Athena Integration

In this article:

• Overview
• Details
• Before setup
• Set up the integration
• Disconnect the integration
• Resolving issues
• Contact support

Overview

Athena Investment Systems delivers robust Order Management System (OMS) solutions purpose-built for institutional asset managers. Our OMS handles full trade lifecycle management, real-time compliance, and seamless integration into accounting, custody, and risk systems.

Details

Before setup

Step 1: Create an integration-specific user in Addepar

For integrations set up at the firm-level or integrations using an API key, we recommend creating an integration-specific user account and email address for the setup. This helps avoid disruptions to the integration.

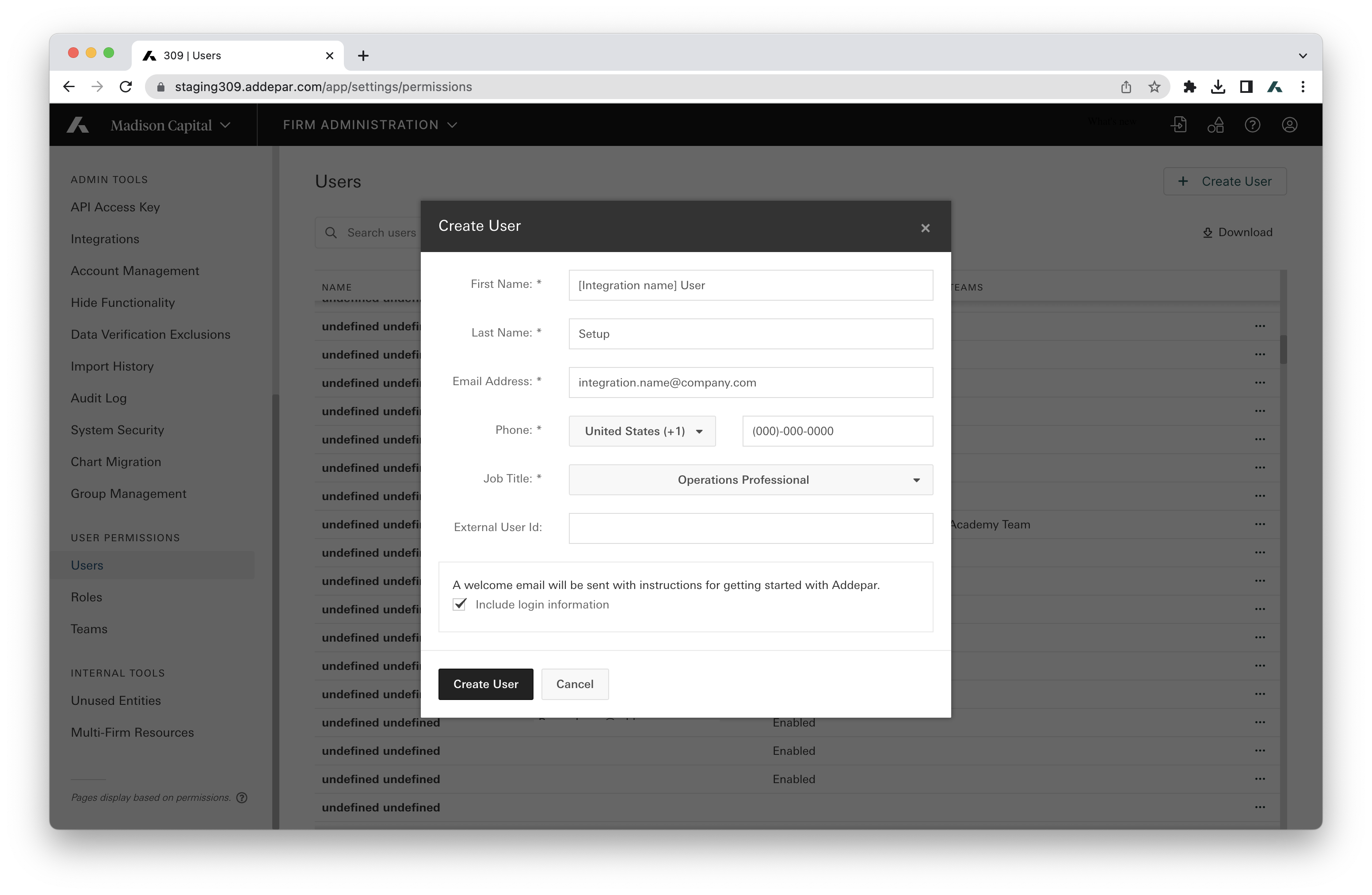

Create the user

1. Go to Firm Administration > Users > Create User.
2. Name the user after the integration and fill in the user details. For example, the name might be 'Integration Name' and the email address ‘integration.name@yourfirm.com.'
3. Check the box to include the login information in the welcome email and create the user.

Set user permissions

1. Set the user permissions for this integration. It's recommended to set 'view-only' level permissions unless otherwise specified here or by the integration provider. If the integration setup uses an API key, make sure to enable API key access.
2. Find the welcome email and sign in to Addepar with the temporary password. Then, reset the user's password and store it securely.
3. Start the integration setup signed in as the new user.

Step 2: Create an API key and secret in Addepar

An API key and secret are two alphanumeric codes used to authorize the transfer of data. Signed in as the user created for the integration setup, create an API key for this integration.

 Note: Set the API access user permission to create API keys.

1. Go to Firm Administration > API Access Key
2. Click the '+' plus icon in the upper right-hand corner of the table.
3. Give the key a name. We recommend naming it after the application or purpose you're using it for.
4. Securely store the API Key and Secret. Once you click 'Done,' the secret will no longer appear, so you need to save it now.
5. Click Done.

Set up the integration

Step 1: Connect Addepar to Spark OMS

1. Open Recon report in Spark

2. Open Addepar report in Spark



   a. In the event data is missing or incomplete, please reach out to Athena Support to validate the transmission is completed without any error.

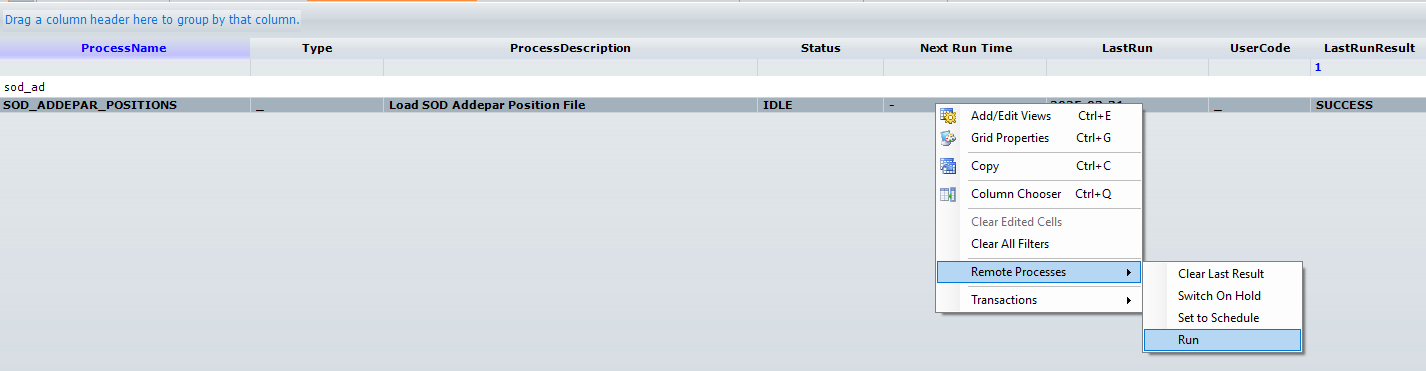

   b. In the event data is delayed user has the ability to trigger a rerun of the scheduled task directly from Spark application

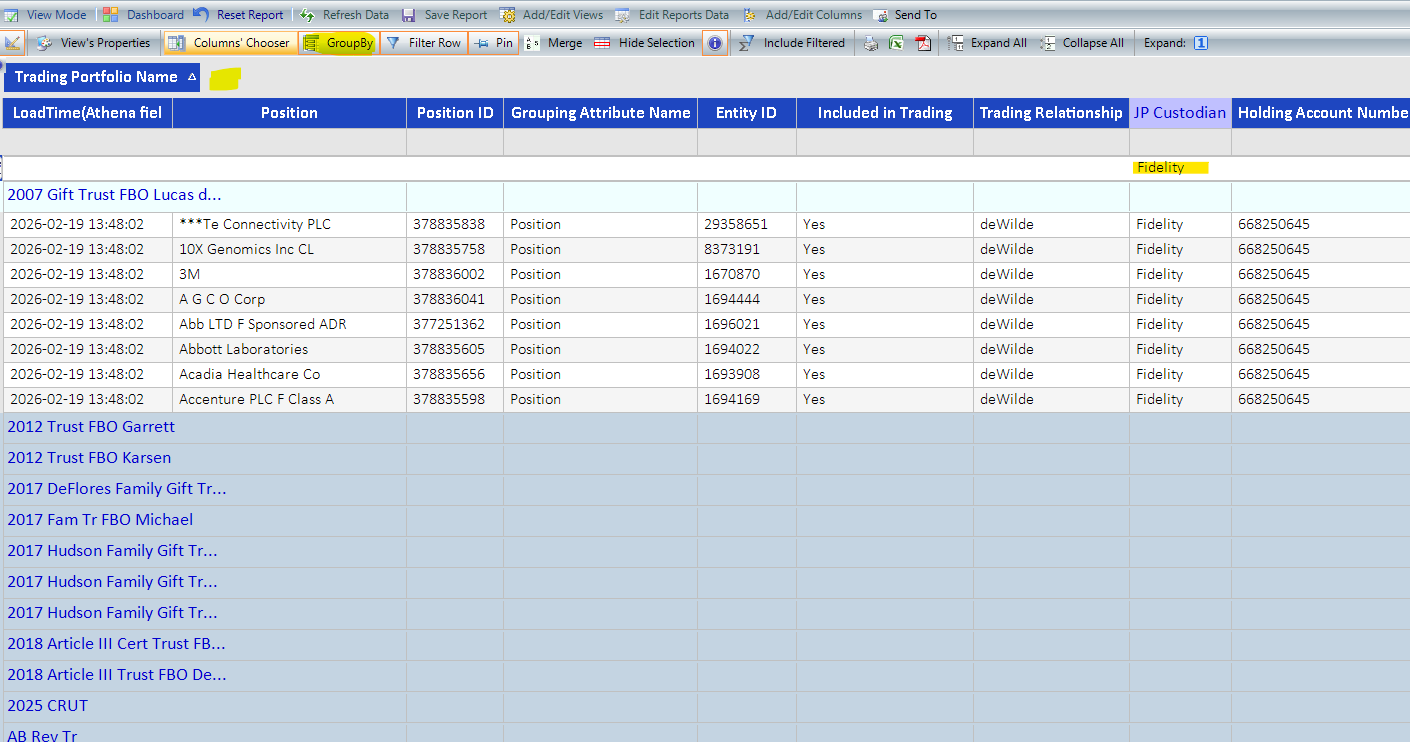

Step 2: Reports in Spark are able to filter-grouping data

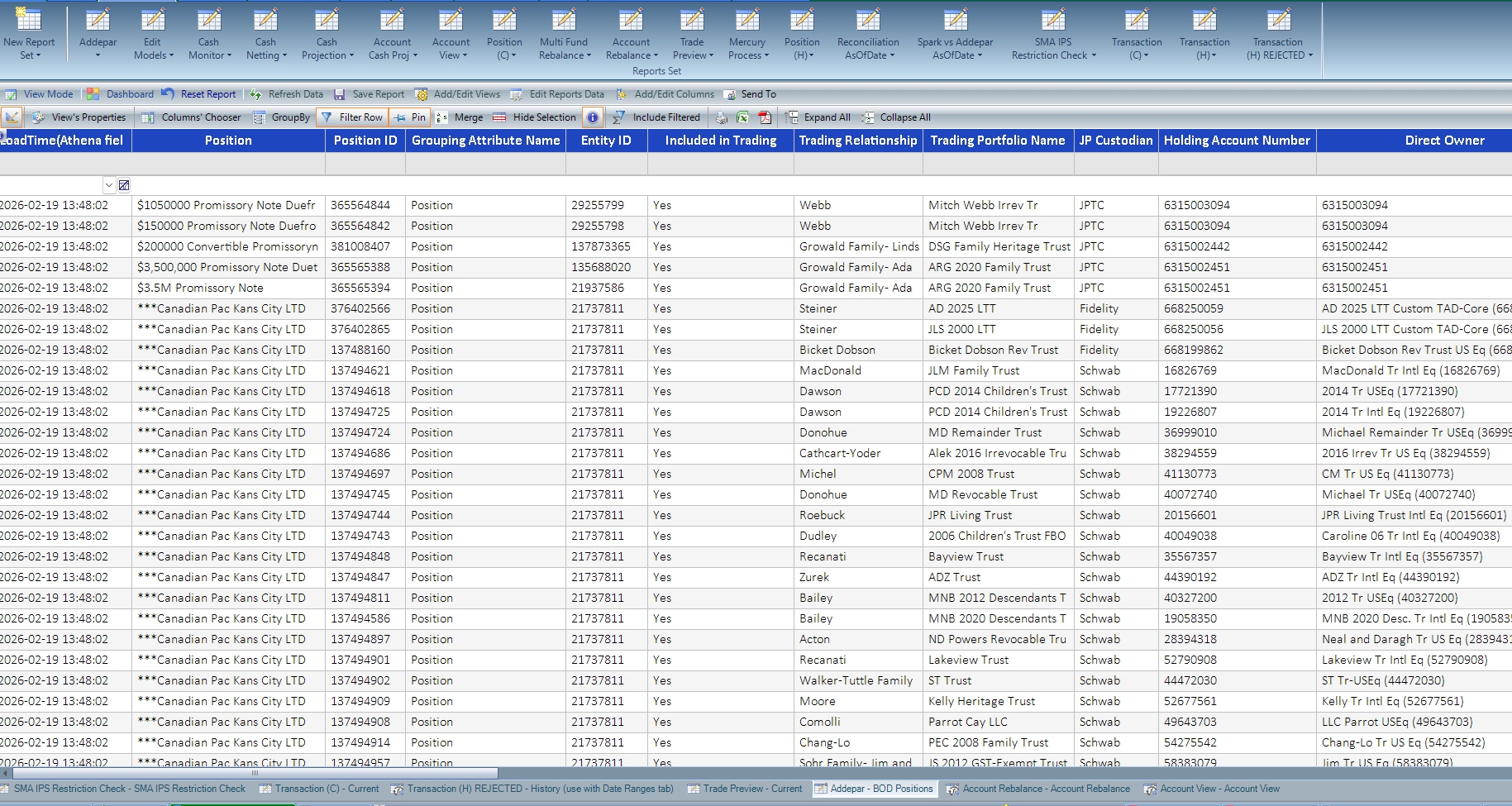

Report in Spark are easily able to filter and grouping by every column as shown below:

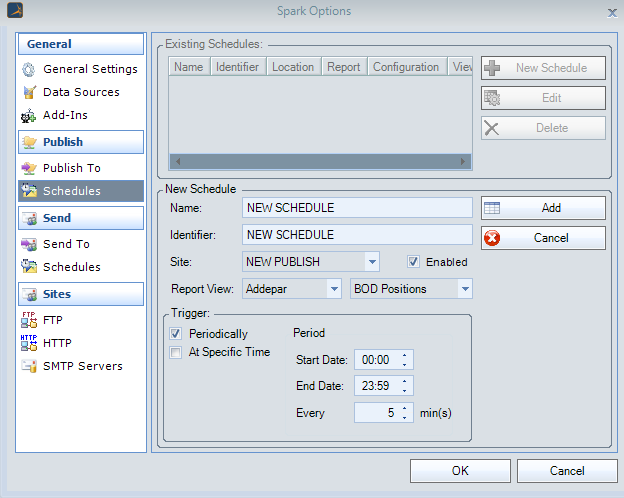

Step 3: Spark is able to schedule Jobs in order to send stored data by Email-FTP

User can add scheduled tasks in order to export reports in HTML, PDF and/or CSV format.

Disconnect the integration

Client can request copy of database, Athena can keep in cold storage, or data can be deleted.

Resolving issues

1. In the event data is missing or incomplete, please reach out to Athena Support to validate the transmission is completed without any error.
2. In the event data is delayed user has the ability to trigger a rerun of the scheduled task directly from Spark application

Contact support

For help with the integration, email support@athenasystems.com or cs@athenasystems.com.
